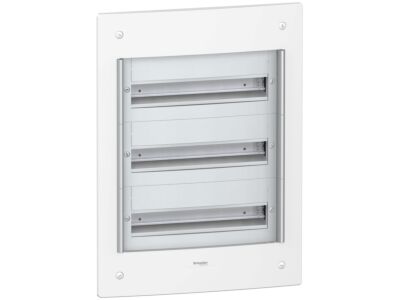

SCHNEIDER PRA35318 Pragma 3x18, zapuštěná

This Pragma enclosure is a flush mounted distribution enclosure. This plastic enclosure is composed of 3 rows of 18 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP30 without door and IP40 with door. An optional door can be installed over the cover. The colour of the enclosure is white (RAL 9016). The one of the front face is grey (RAL 7004). It is intended for new or renovated installation in residential and small buildings. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with a back plate and a reversible front cover with notch. It is provided with DIN rail fixed on the back of the enclosure. It comes with 1 earth terminal block with its support. The terminal block has 24 outgoers (3x25mm² + 21x4mm²). Marking label, label protector and blanking plate are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The Ui rated insultation voltage is 400V. The In rated current is up to 125A. The dissipated power is 68W. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The dimensions are (W) 456mm x (H) 630mm x (D) 86mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-11. It is halogen free. The IK degree of protection is IK08 without door and IK09 with door. The operating temperature is -25°C to 60°C.
