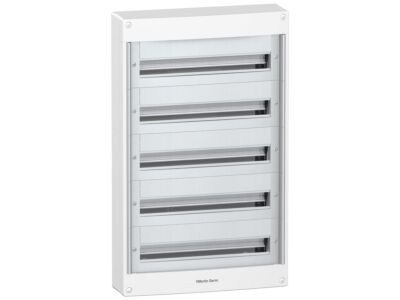

SCHNEIDER PRA13815 PRAGMA POVRCH. 5R 120MOD

This Pragma enclosure is a surface mounted distribution enclosure. This metal and plastic enclosure is composed of 5 rows of 24 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP30 without door and IP40 with door. An optional door can be installed over the cover. The colour of the enclosure is white (RAL 9016). The one of the front face is grey (RAL 7004). It is intended for new or renovated installation in residential and small buildings. The cables can enter via the 4 sides of the enclosure by removable cable plate or via the back of the enclosure. It enables entry by cable, tube or trunking. It is equipped with a back plate and a reversible front cover with notch. It is provided with DIN rail fixed on the back of the enclosure. It comes with 1 earth terminal block with its support. The terminal block has 32 outgoers (3x25mm² + 28x6mm² + 1x50mm²). Marking label, label protector and blanking plate are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The Ui rated insultation voltage is 400V. The In rated current is up to 160A. The dissipated power is 94W. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The dimensions are (W) 550mm x (H) 900mm x (D) 148mm. The material is a metal and plastic self-extinguishing material. The resistance of the plastic to flames and to abnormal heat is 650°C as per IEC 60695-2-11. It is halogen free. The IK degree of protection is IK08 without door and IK09 with door. The operating temperature is -25°C to 60°C.
