Kód ELFETEX
10.383.180

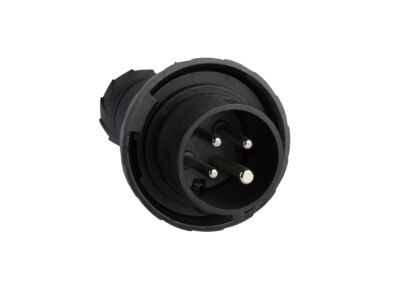

SCHNEIDER PKX16M744 Průmyslová vidlice PRATIKA 16A
Informace o produktu
This Pratika industrial wander plug with fast connection connection is straight. It has 3P+E poles, rated current is 16A and the operating voltage is 500VAC. The dimensions of the base plate are (W) 81mm x (H) 139mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1mm² to 2.5mm². The color of the socket is black to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
- Značka SCHNEIDER ELECTRIC
Zástrčky CEE
- Kabelová průchodka Šroubení
- Počet pólů 3
- Materiál Plast
- Proud IEC 16 A
- Technologie propojení Šroubovací svorka
- Směr propojení Rovný
- Stupeň krytí (IP) IP67
- Pozice na hodinách 7 h
- Barevný kód, Identifikační barva Černá
- Napětí podle ČSN EN 60309-2 500 V (50 Hz 60) černá
