Kód ELFETEX
10.380.874

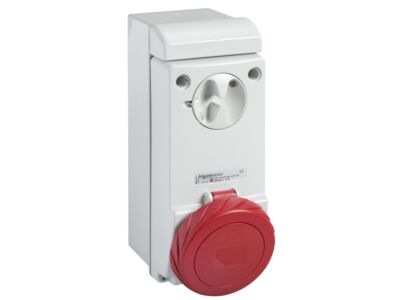

SCHNEIDER PKB63P534 Nástěnná zásuvka s vyp.63A 3PE
Informace o produktu
This PratiKa industrial interlocked socket with captive screws connection is wall-mounted. It has 3P+E pole, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 140mm x (H) 430mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 25mm for 35mm² cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
- Značka SCHNEIDER ELECTRIC
Zásuvky CEE, odpojitelné, s pojistkou
- Provedení Spodní a horní část. kryt
- Spínač Mechanické blokování
- Ochrana Bez
- Počet pólů 3
- Materiál pouzdra Plast
- Proud IEC 63 A
- Typ přepínače Pomocné kontakty
- Stupeň krytí (IP) IP65
- Pozice na hodinách 6 h
- Barevný kód, Identifikační barva Červená
- Napětí podle ČSN EN 60309-2 380-415 V (50+60 Hz) rudý
