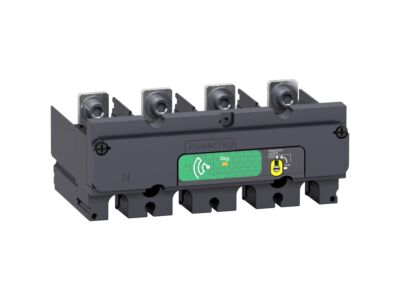

SCHNEIDER LV434021 PowerTag NSX 250A 3P+N

This PowerTag NSX 250A is an energy sensor with wireless communication for 3P+N electrical networks. It is compatible with Compact NSX 100/160/250, Compact NS 100/160/250, Compact INV 100/160/200/250, Compact INS250-100/160/200 and Compact INS250. It provides capability to measure energy, power, voltages, currents, frequency and power factor according to IEC 61557-12 standard. It is able to detect voltage loss and to trigger alarms. The module is self-powered and is installed directly on the bottom side of the circuit breaker or Vigi add-on terminals. It can delivers useful data for monitoring and diagnosis of the associated circuit breaker through a Smartlink concentrator. It communicates wirelessly to Smartlink which can concentrate data for up to 20 PowerTag in the same panel and make them available over Ethernet network. PowerTag NSX is compatible with Acti9 Smartlink SI D and SI B for commercial and building applications. PowerTag NSX is compatible with Acti9 Smartlink EL D for small business applications. PowerTag NSX solution provides a complete knowledge of real time electrical values with a rich and accurate data transfer every 5 seconds. PowerTag associated with Acti9 Smartlink offers a full wireless class 1 solution to monitor energy.
