Kód ELFETEX
10.730.164

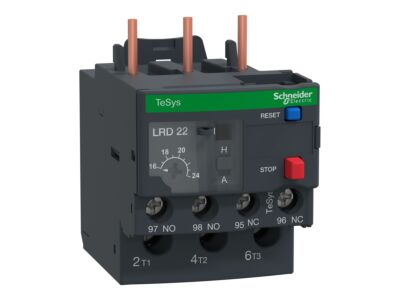

SCHNEIDER LRD22L Jisticí nadproudové relé tř.20A,
Recyklační poplatek vč. DPH
0,17 Kč
Informace o produktu
TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 20, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
- Značka SCHNEIDER ELECTRIC
Tepelné relé
- Způsob montáže Přímá montáž
- Počet pomocných spín.kontaktů 1
- Počet pomocných rozp.kontaktů 1
- Třída aktivace TŘÍDA 20
- Typ připojení hlavního obvodu Šroubová svorka
- Max. jmenovité provozní napětí Ue 690 V
- Nastavitelný rozsah proudu 17 - 24 A
- Reset-funkce automaticky Ano
- Reset-funkce tlačítko Ano
