SCHNEIDER GV4APN01 Černá prodlužovací rukojeť GV4

SCHNEIDER GV4APN01 Černá prodlužovací rukojeť GV4

Značka
SCHNEIDER ELECTRIC
Kód ELFETEX
11.285.557
EAN
3606485444734
Kód výrobce
GV4APN01
Obrázek je pouze ilustrativní.

Informace o produktu

Ke stažení

Informace o produktu

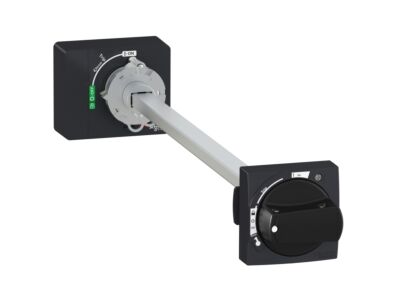

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
  • Značka SCHNEIDER ELECTRIC
Rukojeti pro spínací přístroje
  • Barva Černá
  • Uzamykatelný Ano
  • S osou Ano
  • Vhodné pro jističe Ano
