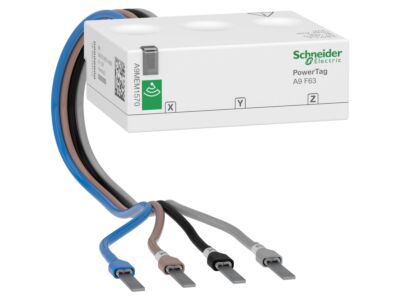

SCHNEIDER A9MEM1570 PowerTag senzor 3P+N A9 F63

This PowerTag A9 F63 3PN for Acti 9 and Multi 9 Monoconnect offers is a Class 1 wireless-communication energy sensor. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, power factor and voltage. It has to be associated with a concentror PowerTag Link or SmartLink SI to provide circuit monitoring and diagnosis down to load level. It sends a voltage loss alarm and the current-per-phase value before being de-energized. It is dedicated to 3P+N devices with 18mm pitch between phase and neutral, rating less than or equal 63A. It can be either mounted on the top or the bottom of the protective device. The Imax maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A and the Ist Starting current is 40mA. The Un Rated voltages are Phase-to-neutral 230VAC +/- 20% or Phase-to-phase 400VAC +/- 20%. The maximum consumption is below or equal to 2VA. The degree of protection is IP20 and IK05. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The Performance category is Class 1. PowerTag Energy 63A complies with IEC 61557-12 standard.
