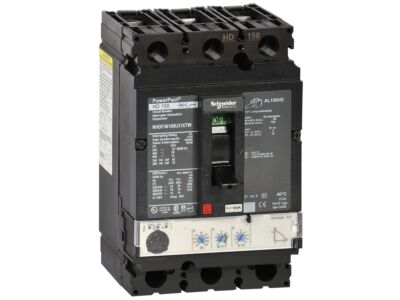

SCHNEIDER NHGF36060U31XTW Jistič PowerPact HG 60A
Recyklační poplatek vč. DPH
2,46 Kč
Informace o produktu
This PowerPact Multistandard H frame molded case circuit breaker has 3 poles, is unit mounted, and has a line rated current rating of 60 A at 40 °C. It comes with a Micrologic 3.0 electronit trip unit providing LI protection and has a breaking capacity of 18 kA at 600 V AC per UL 489 and 18 kA at 500/525 V AC per IEC 947-2. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action. The circuit breaker handle can assume any of three positions, ON, tripped or OFF with a positive visual indication if the circuit breakers has tripped and interrupted the circuit. All PowerPact Multistandard circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. Powerpact Multistandard H frame circuit breakers come with metric terminal nuts on the device line and load side. The device dimensions are height 163 mm, width 104 mm, depth 86 mm. Common accessories and auxiliaries are available within the PowerPact range of molded case circuit breakers Powerpact Multistandard circuit breakers are certified by UL, CSA, NOM, IEC, CCC, and CE marked for global acceptance
- Značka SCHNEIDER ELECTRIC
Výkonové jističe motorové
- Technika aktivace Elektronický
- Jmenovitý trvalý proud Iu 60 A
- Typ připojení hlavního obvodu Šroubová svorka
- Typ ovládacího prvku Ostatní, jiné
- Konstrukční typ zařízení Vestavěné zařízení pevně zabudované
- S vestavěným pomocným spínačem Ano
- S vestavěným podpěťovým spouštěčem Ano
- Počet pólů 3
- Jmenovitá zkratová vypínací schopnost Icu při 400V, AC 35 kA
- Stupeň krytí (IP) IP40
- Výška 163 mm
- Šířka 104 mm
- Hloubka 86 mm
- Jmenovité pracovní napětí 525 - 525 V
- Rozsah nastavení spouštěče přetížení 15 - 60 A
- Rozsah nastavení nezpožděné zkratové spouště 90 - 900 A
