SCHNEIDER enn05013 Mureva, inst. krabice 225 x 175

SCHNEIDER enn05013 Mureva, inst. krabice 225 x 175

Značka
SCHNEIDER ELECTRIC
Kód ELFETEX
10.887.256
EAN
3295150050136
Kód výrobce
ENN05013
Obrázek je pouze ilustrativní.

Informace o produktu

Ke stažení

Informace o produktu

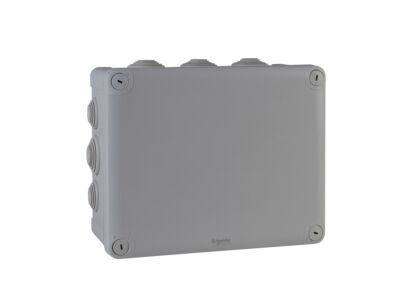

This rectangular surface mounted junction box ENN05013 comes with 4 x 25 mm, 8 x 32 mm grommets and quarter-turn screw-fixed cover Color grey, dimensions: width 245 mm, height 105 mm, depth 200 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 750 °C Material: cover PP (polypropylene), grommet SBS (styrene butadiene styrene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The boxes are easy to install, they are stable and they are halogen-free. You can equip them according to your specific needs or buy them as complete junction boxes With Mureva electrical supplies at hand, no job will be too demanding!
  • Značka SCHNEIDER ELECTRIC
Krabice pro montáž na stěnu / strop
  • Max. průřez vodiče 32 mm²
  • Osazení Bez
  • Tvar obdélníkový
  • Způsob montáže Nástěnná a stropní montáž
  • Pro trubky o průměru 32 mm
  • Délka 251 mm
  • Šířka 204 mm
  • Hloubka 108 mm
  • Počet přívodů 12
  • Typ průchodky pouzdrem Těsnicí membrána
  • Materiál Plast
  • Plocha Bez povrchové úpravy
  • Barva Šedá
  • Stupeň krytí (IP) IP55
  • Upevnění krytu /víka Šroubováno
  • Provedení krytu Neosazeno /záslepný kryt
  • Zachování funkce Bez
  • Pro Ex-zónu Bez
  • Pro Ex-zonu prachu Bez
  • Bez halogenů Ano
  • Rozsah provozních teplot -25 - 40 °C
  • Odolnost proti povětrnostním vlivům Ano
  • Druh ochrany ( NEMA) Ostatní, jiné
