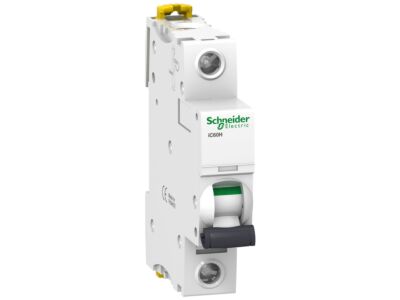

SCHNEIDER A9F84132 Jistič iC60H 1P 32A C

This Acti 9 iC60H is a low voltage miniature circuit breaker (MCB). It is a 1P circuit-breaker with 1 protected pole, 32A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 10000A at 230VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 15kA at 230VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
